SEMI International Standards
Standards New Activity Report Form (SNARF)
Date Prepared: 07/07/2024Revised (if Applicable):

Document Number: 7351
SNARF for: Line-Item Revision to SEMI E49.8-1103 (Reapproved 1211), Guide for High Purity and Ultrahigh Purity Gas Distribution Systems in Semiconductor Manufacturing Equipment

Originating Global Technical Committee: Gases
Originating TC Chapter: North America
Task Force (TF) in which work is to be carried out: Materials of Construction of Gas Delivery Systems Task Force
Note: If a new task force is needed, also submit a task force organization form (TFOF)

___________________________________________________________________________
1. Rationale:
a. Describe the need or problem addressed by this activity.
(Indicate the customer, what benefits they will receive, and if possible, quantify the impact on the return on investment [ROI] if the Document is implemented.)

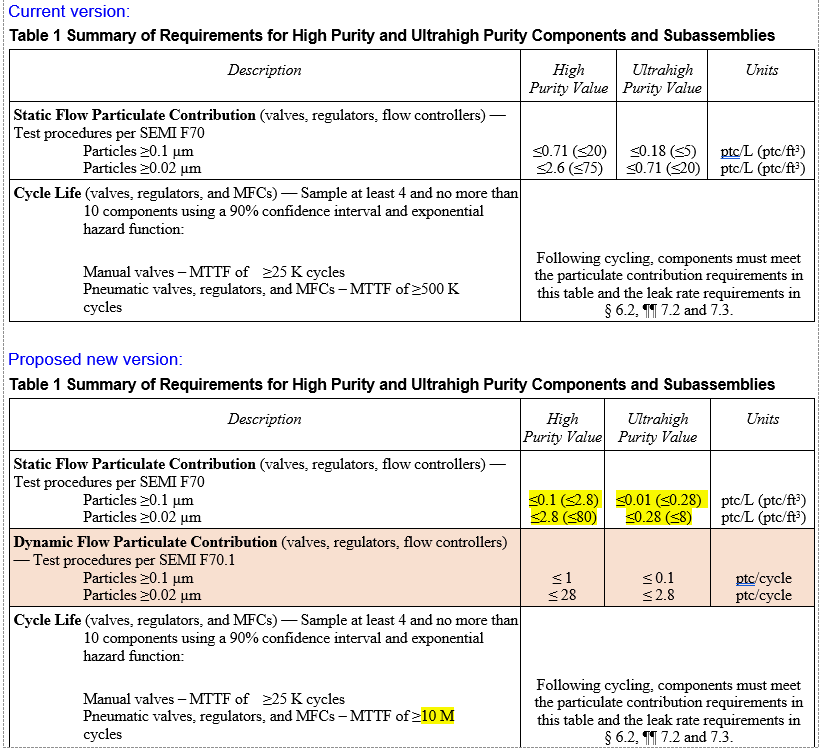

The specification for High purity and Ultra High purity gases is outdated. The specification for both High Purity as well as for Ultra High purity is in both cases ISO 14644-1 class 3. Current practice is for High purity to specify ISO 14644-1 class 2 (≤ 0.1 ptc/L of size >0.1 µm) and for Ultra High purity to specify ISO 14644-1 class 1 (≤ 0.01 ptc/L of size >0.1 µm)..

Since the introduction of processes that use switching gas supply means (like ALD and ALE), the impact of particle generation due to switching has become more important. For this reason SEMO F70.1 has been introduced. With this method we can identify the particle contribution as a result of switching valves. With higher frequencies this will influence the average particle concentration. To indicate a desired rate a specification is proposed.

Another result of the introduction of switching gas supply is that the number of cycles per given time is also increased. The indicated life time of a pneumatically or electric driven valve of 500.000 cycles will be reached in less than a year when the applied frequency is only once per minute. Current market requirements are > 10 million cycles for a valve.


b. Estimate effect on industry.
2: Major effect on an industry sector - identify the relevant sector
Sector or Company Information: Deposition and etch

c. Estimate technical difficulty of the activity.
I: No Difficulty - Proven concepts and techniques exist or quick agreement is anticipated

___________________________________________________________________________
2. Scope:
a: Describe the technical areas to be covered or addressed by this Document development activity. For Subordinate Standards, list common concepts or criteria that the Subordinate Standard inherits from the Primary Standard, as well as differences from the Primary Standard:


b: Expected result of activity
New Preliminary Standard

For a new Subordinate Standard, identify the Primary Standard here:


Revision or addition of one or more Subordinate Standards to an existing Primary Standard

For Standards, identify the Standard Subtype below:
Guide

Miscellaneous (describe below):

___________________________________________________________________________
3. Projected Timetable for Completion:

a: General Milestones
a. Activity Start: 08/01/2024b. 1st Draft by: 03/01/2025
c. (Optional) Informational Ballot by: d. Letter Ballot by: 04/09/2025
e. TC Chapter Approval By:06/03/2025

_____________________________________________________________________________
4. Liaisons with other Global Technical Committees/TC Chapters/Subcommittees/TFs:
a. List SEMI global technical committees, TC Chapters, subcommittees, or task forces in your or other Regions/Locales that should be kept informed regarding the progress of this activity. (Refer to SEMI Standards organization charts and global technical committee charters and scopes as needed.)
N/A

b. List any planned Type I Liaisons with external nonprofit organizations (e.g., SDO) that should receive Draft Documents from Standards staff for feedback during this activity and be notified when the Letter Ballot is issued (refer to Procedure Manual § 7):
N/A

c. Intercommittee Ballots:
will be issued – identify the recipient global technical committee(s):

Identify the recipient global technical committee(s):
Facilities
___________________________________________________________________________
5. Safety Considerations:
The resulting document is expected:
NOT to be a Safety Guideline

NOTE FOR "to be a Safety Guideline": When all safety-related information is removed from the Document, the Document is NOT technically sound and complete - Refer to Section 15.1 of the Regulations for special procedures to be followed.

NOTE FOR "NOT to be a Safety Guideline": When all safety-related information is removed from the Document, the Document is still technically sound and complete.

___________________________________________________________________________
6. Intellectual Property Considerations:
Note: Both a: and b: below should be checked for Revision of existing Standard(s) and Safety Guideline(s).

a. For a new Standard or Safety Guideline and for any part to be modified or added in a Revision of published Standards and Safety Guidelines:
the use of patented technology is NOT required.

If "patented technology is intended to be included in the proposed Standard(s) or Safety Guideline(s) " is selected above, then also check one:


b. For Revision, Reapproval, Reinstatement, or Withdrawal of existing Standard(s) and Safety Guideline(s):
there is no known material patented technology necessary to use or implement the Standard(s) and Safety Guideline(s)

c. The body of the Document and any Appendices, Complementary Files, Related Information sections, or Various Materials that may or may not be a part of the Document by reference:
the incorporation of Copyrighted Item will NOT be required



NOTE FOR ‘the use of patented technology or the incorporation of Copyrighted Item(s) is NOT required’: If in the course of developing the Document, it is determined that the use of patented technology or Copyrighted Item(s) is necessary for the Document, the provisions of Regulations § 16 must be followed.

NOTE FOR ’will incorporate Copyrighted Item’: A copyright release letter must be obtained from the copyright owner prior to publication.

___________________________________________________________________________
7. Comments, Special Circumstances:
None.

__________________________________________________________________________
8. TC Member Review:
is not required for this SNARF.

Member Review Start Date; None.
Member Review End Date: None.

NOTE FOR ‘TC Member Review’ is required by the Regulations for a period of at least two weeks
before approval of a new, or a major revision of an existing, Standard or Safety Guideline. (Refer to Regulations ¶ 8.2.1)
__________________________________________________________________________

9. SNARF Approval Dates:
TC Chapter or GCS04/03/2025
Recorded in TC Minutes

__________________________________________________________________________

10. SNARF Extension Dates:
TC Chapter Extension Granted on
Extension Expires on
